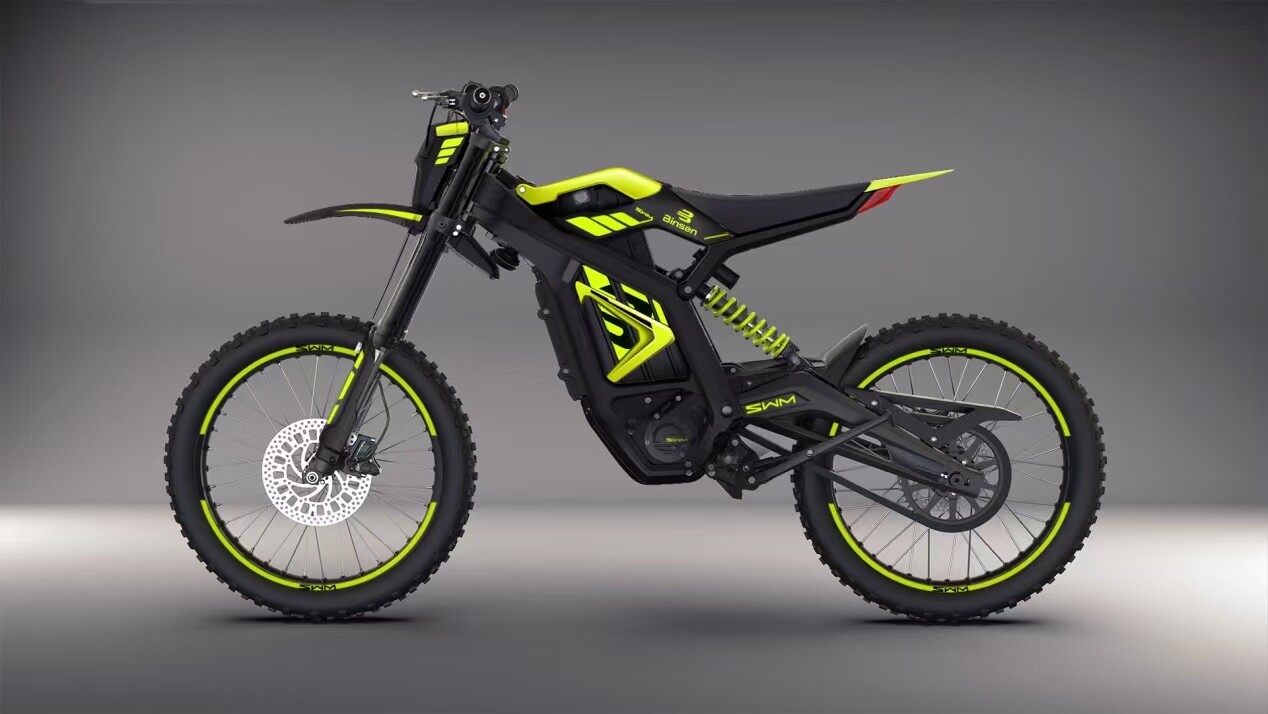

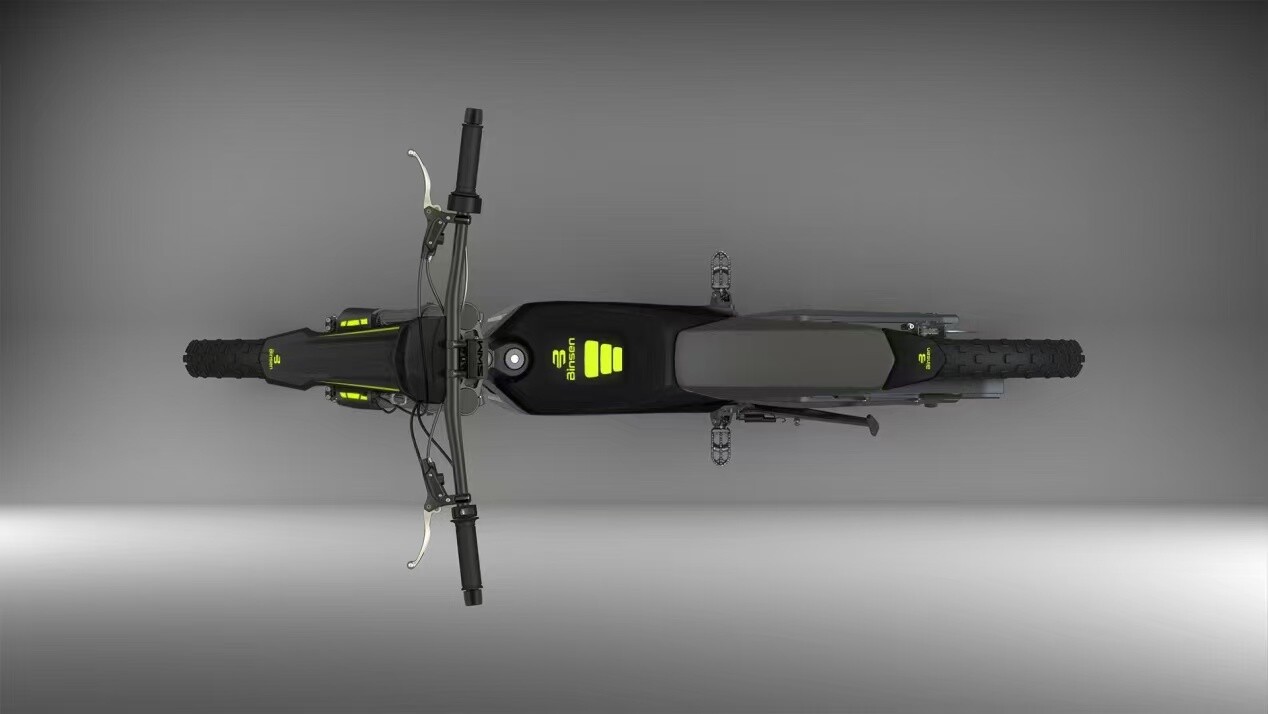

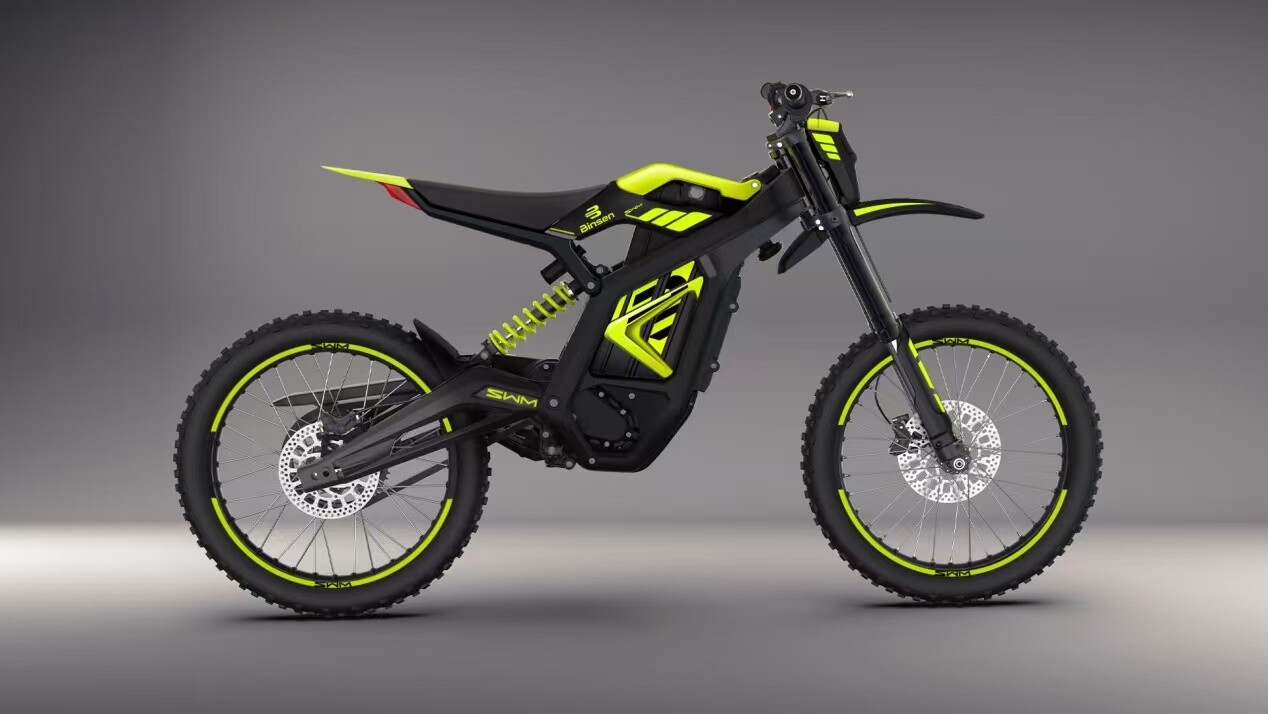

- Newly Upgraded -
ELECTRIC OFF ROAD BIKE
BINSEN EX2 PRO
A lightweight electric off-road vehicle that can shuttle through streets and forest roads
- binsen ex2 -
EXPLORE THE NATURE
On the road of endurance, it is not afraid of the loneliness of long nights, and the 80 kilometer journey is its light footprint.
After charging, it's like a phoenix reborn, embarking once again to continue writing the chapter of speed and passion.
7600
W
Max output power
0
N.m
Max torque of motor
0
Km/h
Max speed
0
Km
Range @40Km/h
0
°
Gradeability
0
H
Fast Charging

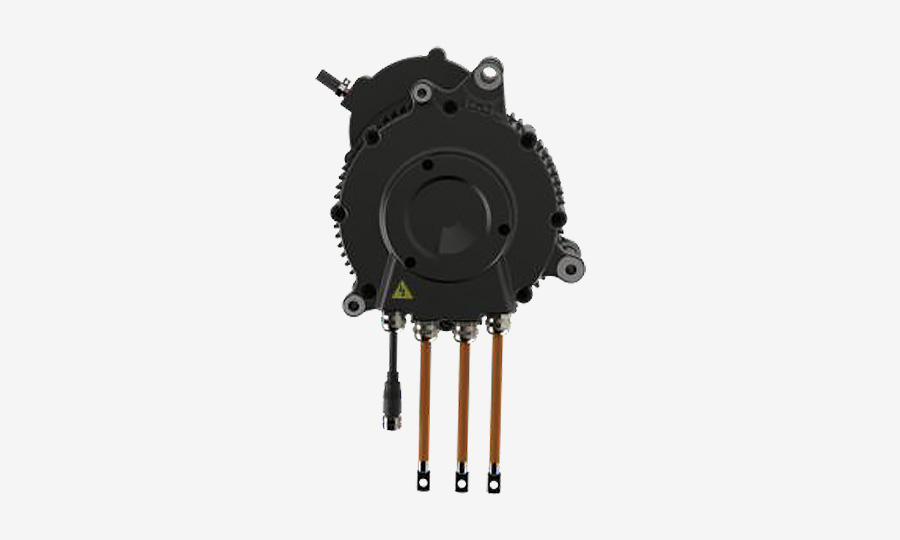

High speed electric motor(8000r)
The powerful power heart has witnessed the off-road road of tens of thousands of Light Bee owners. After years of iterative optimization,reliability and stability have reached a new level With a peak power of 8000W, reach a top speed of 85Km/h.

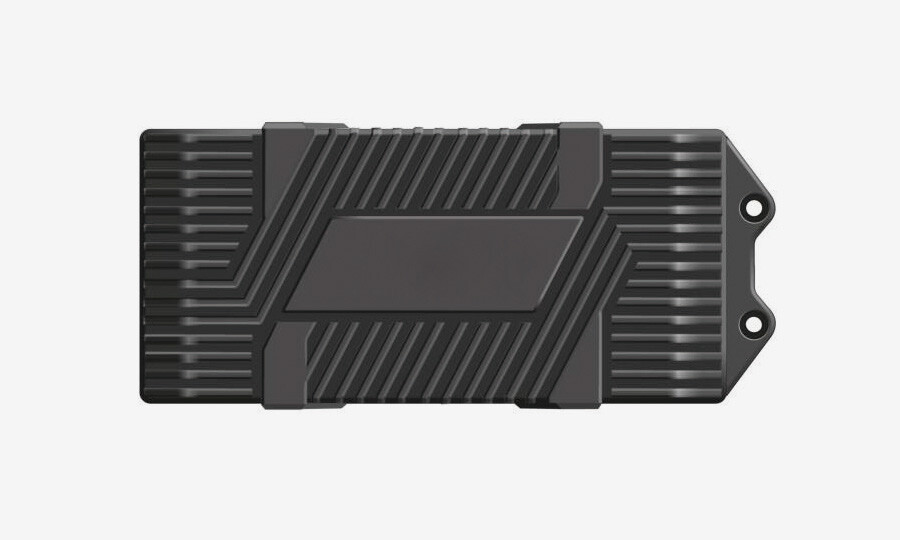

Regenerative Sine Wave Vector Controller
Provides powerful starting torque and strict battery current limits, effectively extending range and reducing energy consumption.

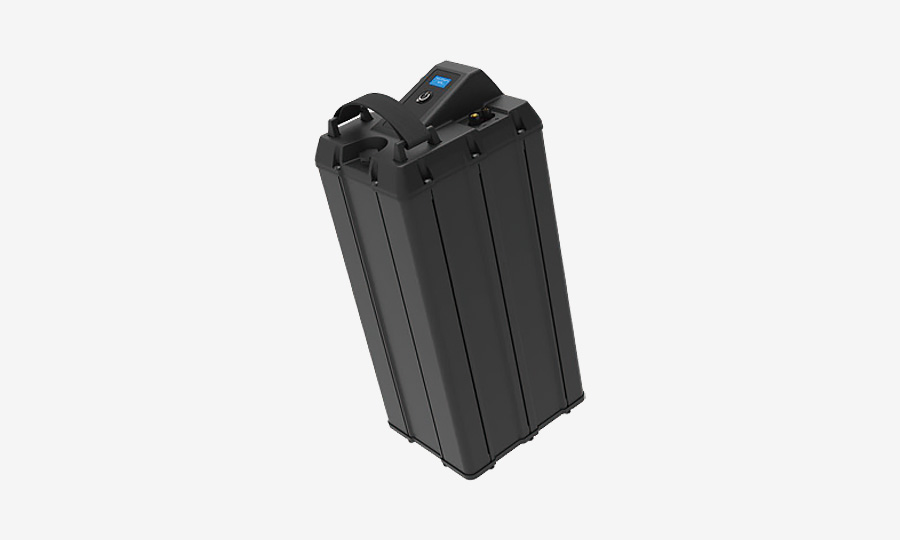

Ternary Lithium Battery(21700)
With a rechargeable lithium battery and a capacity of 70V40Ah, this electric bike offers a range of up to 80km at a speed of 40km/h, ensuring you can ride for hours without worrying about running out of power.

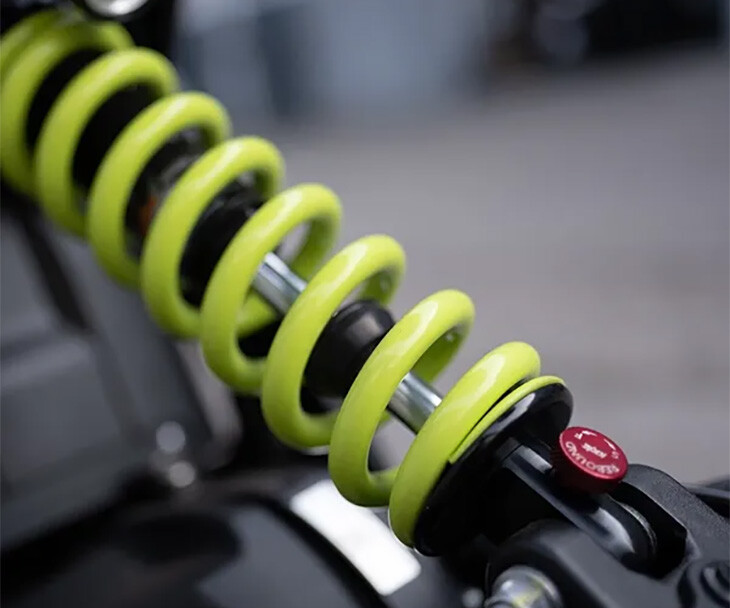

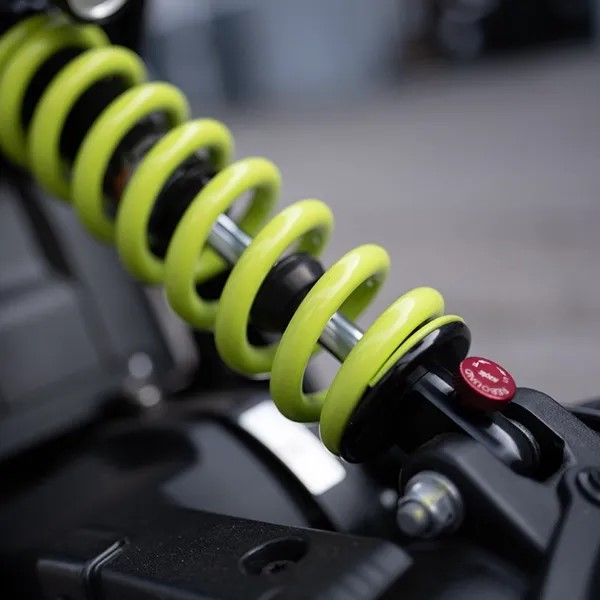

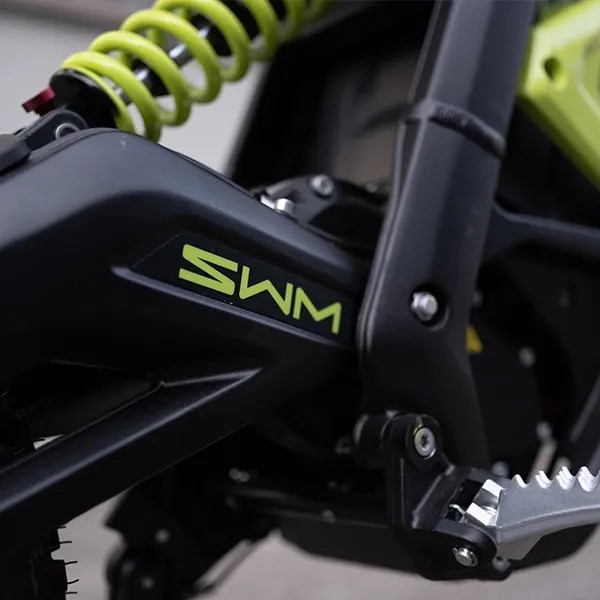

Rear Suspension
kke Monoshock, adjustable for compression & rebound, providing reliable protection for riders to conquer unknown roads.

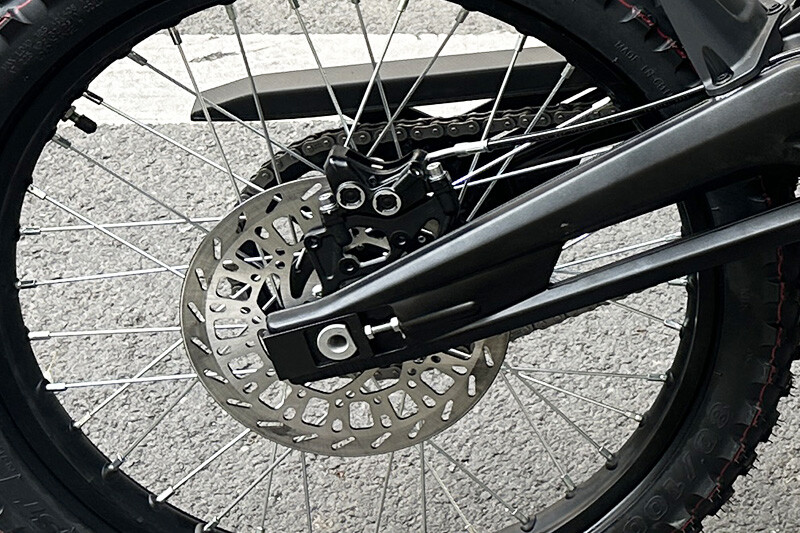

Hard-core braking system, opposite 4-piston
Brake(Front)220 0pposed 4-piston(4x18)
Brake(Rear)220/200 0pposed 4-piston(4x18)
Front 70/100-19 | 800/100-19
Rear 70/100-19

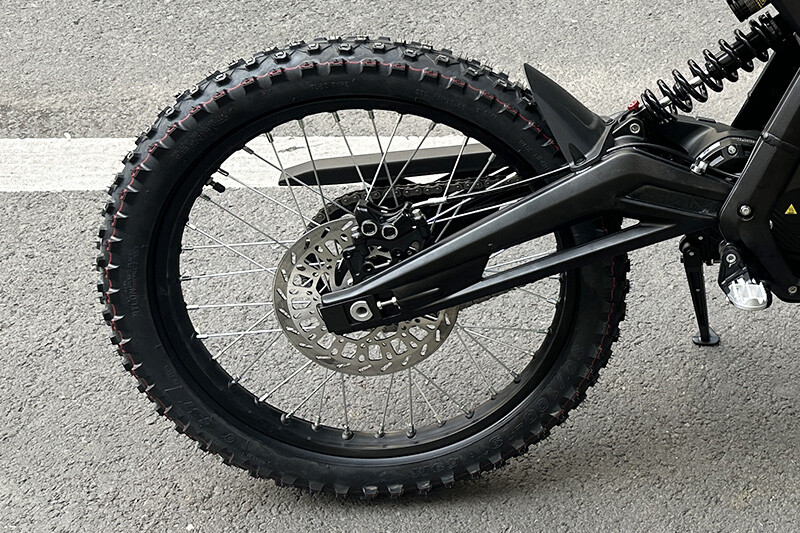

professional off-road wheelset
Vehicles can maintain excellent traction on various complex terrains. The high-strength wheelset structure and dense tread pattern provide enough confidence to overcome difficult situations.

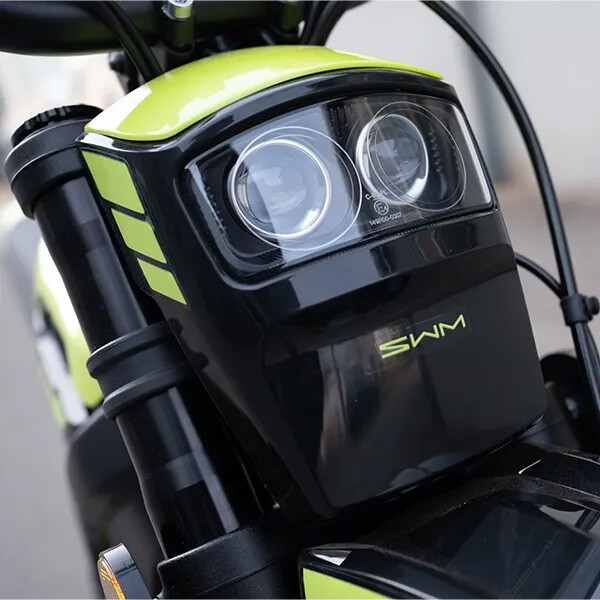

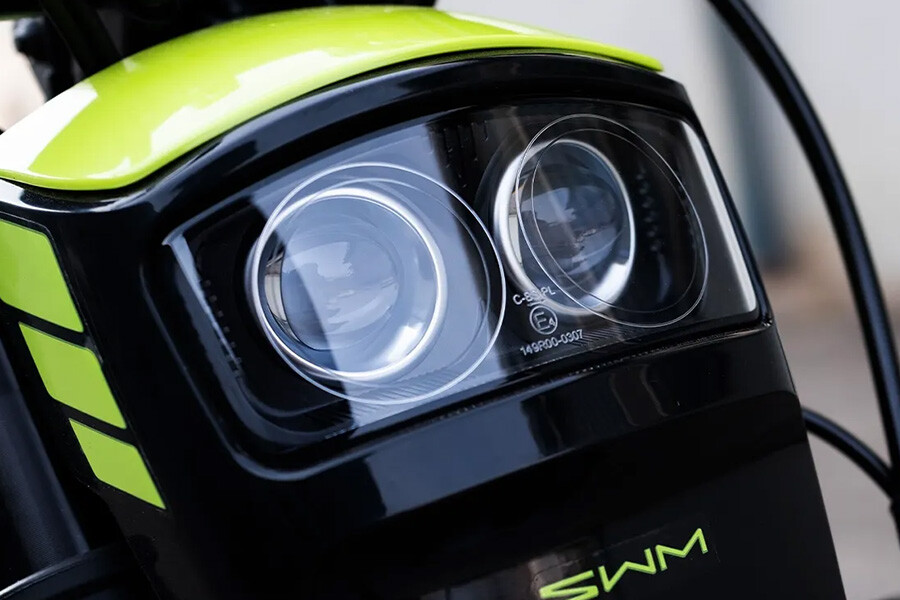

LED headlights
The headlights, taillights, and brake lights are all LED, which are energy-saving and environmentally friendly, ensuring driving safety.
parameter
Chassis & Dimensions
- LxWxH(mm)
1880*845*1100
- Min. Ground Clearance(mm)
270
- Wheelbase(mm)
1250
- Seat height(mm)
860
- Curb Weight(kg)
72
- Max.Recommended Load(kg)
100Kg
- Frame
Aluminum Alloy
- Front Tear
70/100-19|80/100-19
- Rear Tear
70/100-19
- Max. Speed(km/h)
85
- Range Per Charge
80Km@40Km/h
- Max. Climbling Angle
48°
- Brake(Front)
220 0pposed 4-piston(4x18)
- Brake(Rear)
220/200 0pposed 4-piston(4x18)
- Lights
LED(Headlights, Rear Lights, Brake Lights)
- TCS
On/Off
- Power Modes
Eco & Sport
- Brake Power-off System
Sport Mode Can Be Manually Turned Off
- Front Suspension
KKE Trip 200 Damping Adjustable
- KERS
Software 10 Gear Flashing / Manual 3Gear
- Rear Suspension
KKE Trip 200 Damping Adjustable
Power System
- Peak Power(kw)
8.0
- Battery Capacity
72V40Ah
- Rated Power(kw)
4.0
- Peak Torque(N·m)
380N.m
- Charging Time(h)
3.5(Slow Charging)/2.5 (Fast Charging)
- Power System
PMSM & Reduction Gearbox
- Gear Ratio(Gear & Chain Drive)
Primary 3.105/ Final 3.428(14/48)
- Motor
High speed electric motor(8000r)
- Battery Type
Ternary Lithium Battery(21700)
- Controller
Regenerative Sine Wave /Vector Controller
