- Lightweight -
ELECTRIC OFF ROAD BIKE
BINSEN EX2

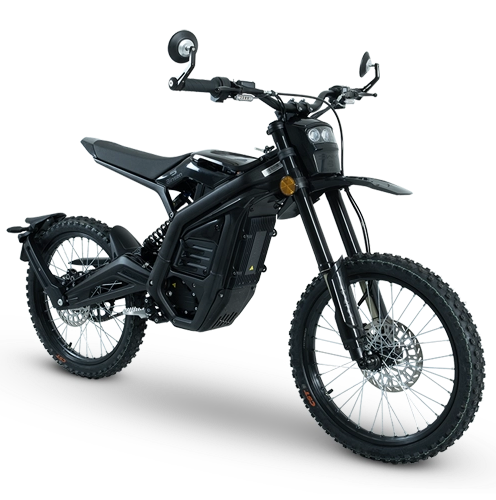

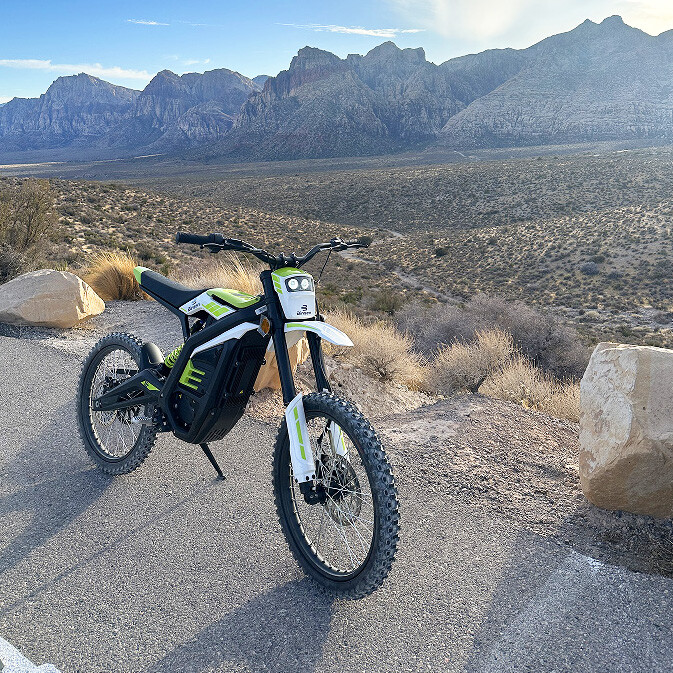

A lightweight electric off-road vehicle that can shuttle through streets and forest roads
- binsen ex2 -
EXPLORE THE NATURE
The Binsen EX2 is silent and ready to explode, with its potential hidden like a hidden volcano.
At the moment of startup, the power surged like a tide, sweeping by like a gust of wind, and the heart rate and speed surged synchronously during acceleration.
6156
W
Max output power
0
N.m
Max torque of motor
0
Km/h
Max speed
0
Km
Range @40Km/h
0
°
Gradeability
0
S
0-50km/h acceleration

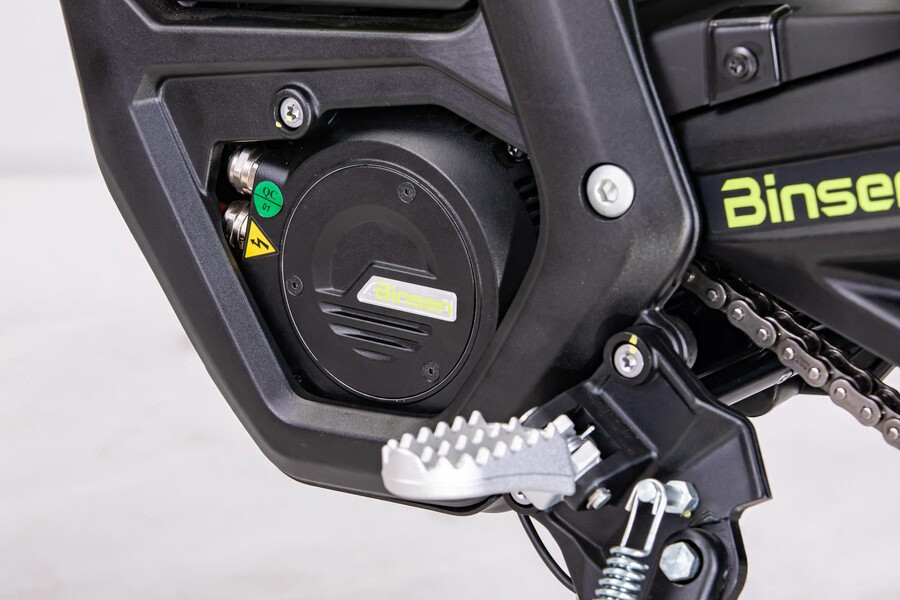

High speed electric motor(8000r)
The powerful power heart has witnessed the off-road road of tens of thousands of Light Bee owners.
After years of iterative optimization,reliability and stability have reached a new level With a peak power of 8000W, reach a top speed of 85Km/h.
Vector sine wave controller
Provides powerful starting torque and strict battery current limits, effectively extending range and reducing energy consumption.

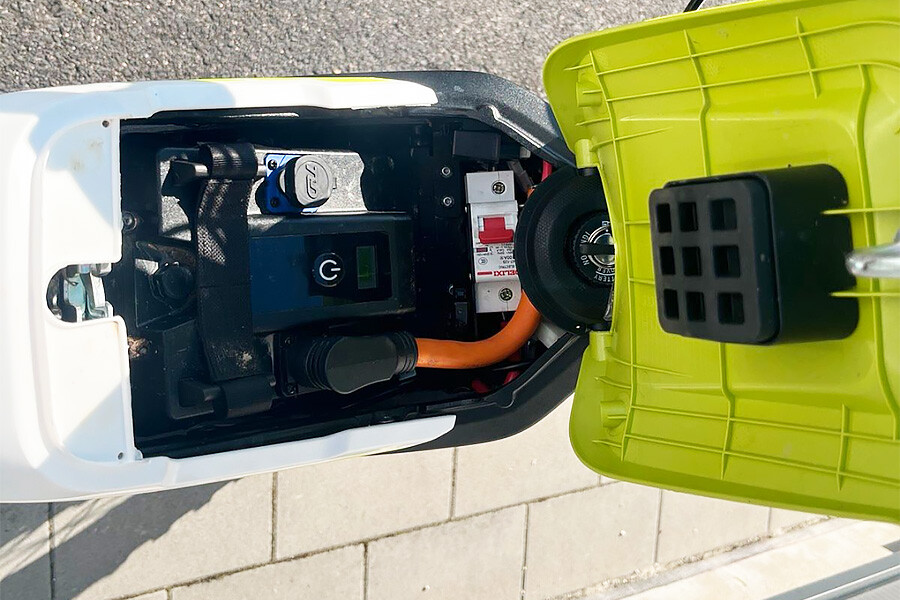

72V 30AH Lithium Battery
With a rechargeable lithium battery and a capacity of 70V30Ah, this electric bike offers a range of up to 70km at a speed of 40km/h, charging only takes 2-3 hours, which can meet urban commuting and mild off-road needs.

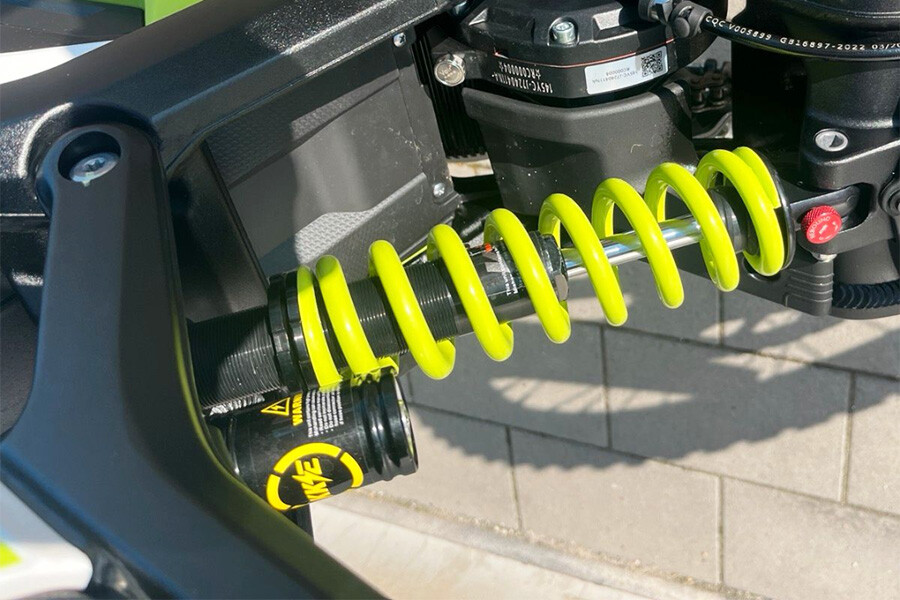

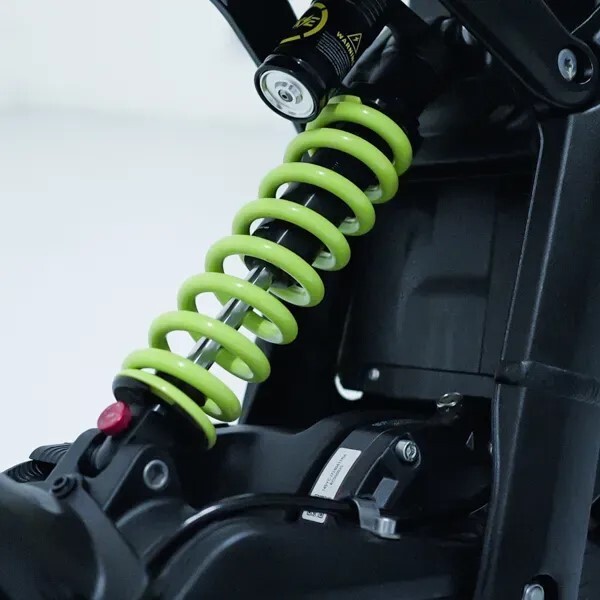

KKE stroke 230 damping adjustable
The rear suspension adopts adjustable KKE airbags for shock absorption, with a stroke of 230mm, providing reliable protection for riders to conquer unknown roads.

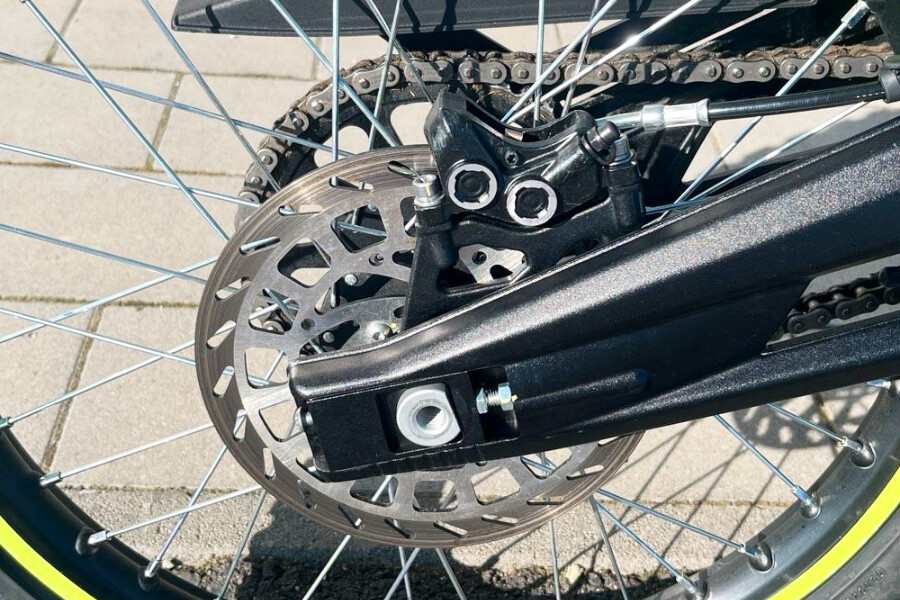

Opposed 4-piston brake system
Brake(Front)220 0pposed 4-piston(4x18)
Brake(Rear)220/200 0pposed 4-piston(4x18)
Off-road tires
Front 70/100-19
Rear 70/100-19
Regardless of the road conditions, it can achieve a balance between movement and stillness, and be able to move freely.

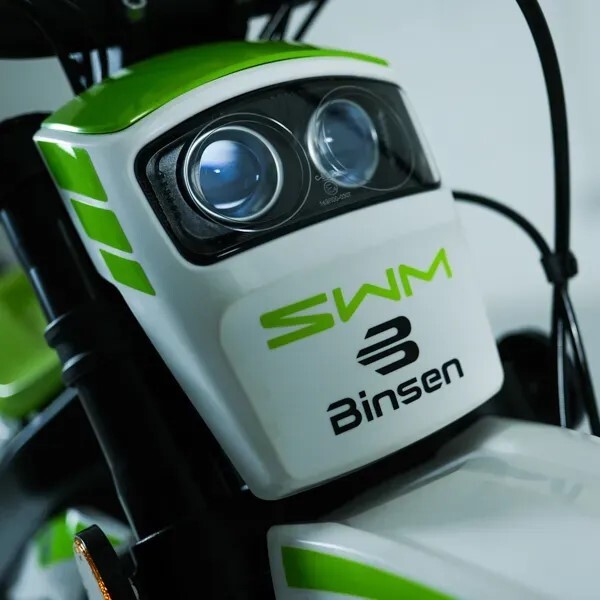

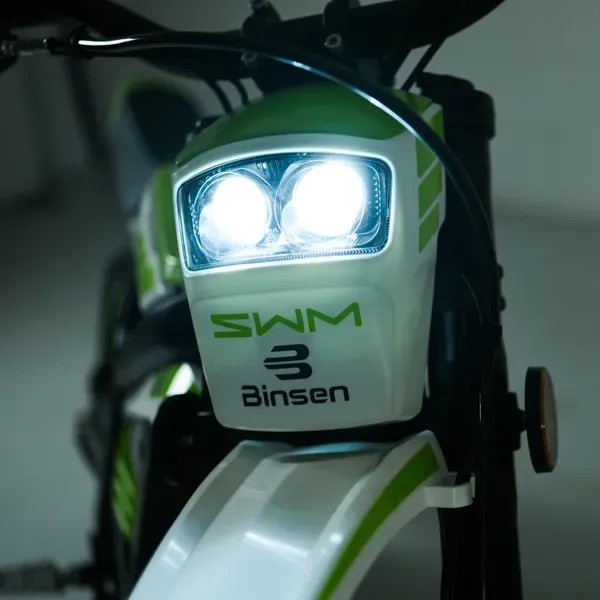

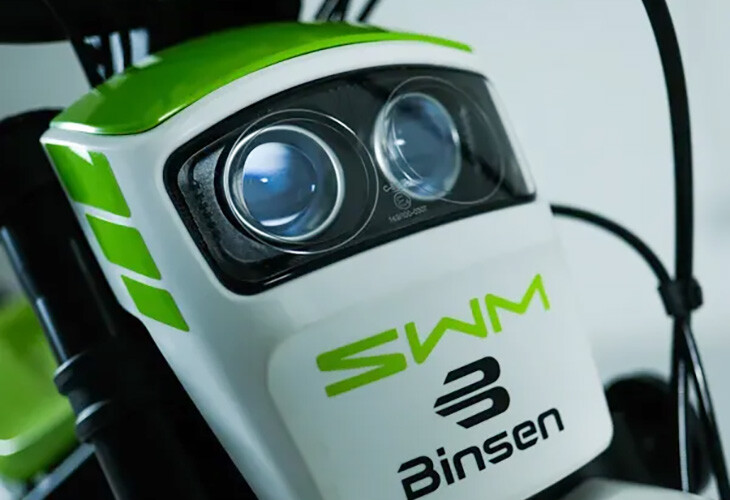

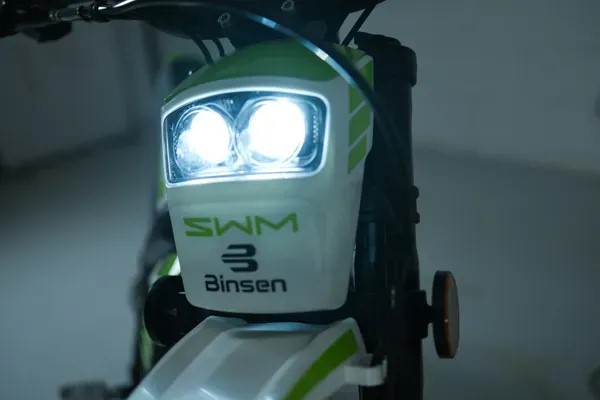

LED headlights
The headlights, taillights, and brake lights are all LED, which are energy-saving and environmentally friendly, ensuring driving safety.
DETAILS GALLERY
Color
parameter
Chassis & Dimensions
- LxWxH(mm)
1880*800*1100
- Min. Ground Clearance(mm)
270
- Wheelbase(mm)
1250
- Seat height(mm)
860
- Curb Weight(kg)
63
- Max.Recommended Load(kg)
100Kg
- Frame
Aluminum Alloy
- Front Tear
70/100-19
- Rear Tear
70/100-19
- Max. Speed(km/h)
85
- Range Per Charge
70Km@40Km/h
- Max. Climbling Angle
48°
- Brake(Front)
220 0pposed 4-piston(4x18)
- Brake(Rear)
220/200 0pposed 4-piston(4x18)
- Lights
LED(Headlights, Rear Lights, Brake Lights)
- TCS
TCS Can Be Closed
- KERS
Software 10 Gear Flashing / Manual 3Gear
- Brake Power-off System
Switchable at Sport Mode
- Front Suspension
KKE Trip 200 Damping Adjustable
- Rear Suspension
KKE Trip 200 Damping Adjustable
Power System
- Peak Power(kw)
6.5
- Battery Capacity
72V35Ah
- Rated Power(kw)
3.5
- Torque(N·m)
33N.m
- Charging Time(h)
3.5(Slow Charging)/2.5 (Fast Charging)
- Power System
PMSM & Reduction Gearbox
- Gear Ratio(Gear & Chain Drive)
Primary 3.105/ Final 3.428(14/48)
- Motor
High speed electric motor(8000r)
- Battery Type
Ternary Lithium Battery(21700)
- Controller
Regenerative Sine Wave /Vector Controller
